Description

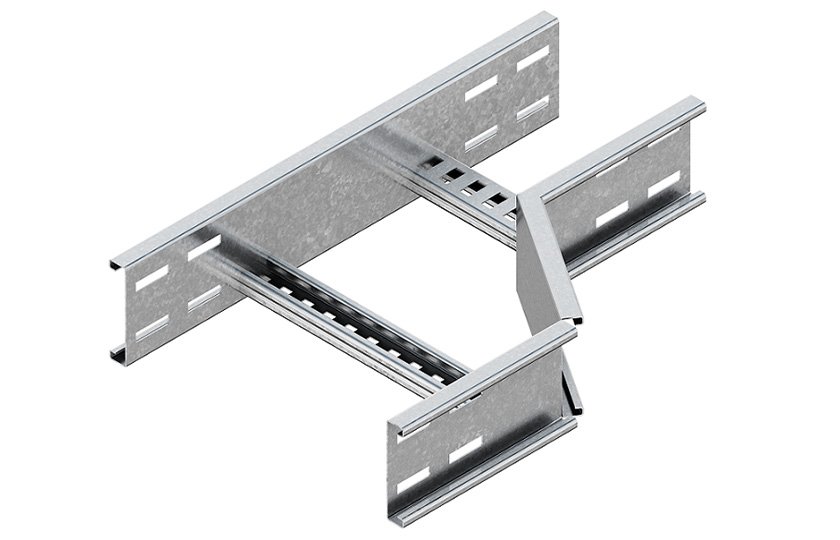

Post-galvanised and Stainless Steel Ladder
voestalpine Metsec cable ladders are designed as a complete system with simple accessories for ease of installation. Splice plates are supplied complete with M10 cup square bolts, shake proof washers, and nuts with a high tolerance fit for optimum structural performance.
The complete system is available in 4 depths from 50mm – 150mm each with the same footprint to aid setting out when final loadings are not yet available.
Straight Lengths
Available in 3m & 6m lengths & widths up to 900mm
Metsec cable ladders are available in 3m lengths as standard and 6m lengths to order. Standard widths are 150mm, 300mm, 450mm, 600mm, 750mm and 900mm with alternative widths available, to order, to meet the requirements of the European markets.
The complete system is produced, as standard, from hot dip galvanised mild steel in 4 depths; 50mm, 100mm, 125mm and 150mm, with stainless steel grade 1.4404 (316L) to order.
Rungs are 41mm x 21mm channel on all depths of ladder and are alternately reversed as standard with other rung orientations produced to order.
Ladder side rails feature 11mm x 38mm slots at 60mm centres allowing easy connection to each other also allows site cut ladders to be connected generally without the need to drill.
Closed and ventilated covers are available in 1.5m lengths.
Light Duty – 50mm Deep Cable Tray Straight Section
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm | 3m Long | 6m Long |
| 150 | LSL050/0150/HDG/3 | N/A |
| 300 | LSL050/0300/HDG/3 | N/A |
| 450 | LSL050/0450/HDG/3 | N/A |
Medium Duty – 100mm Deep Cable Tray Straight Section
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm | 3m Long | 6m long |
| 150 | LSL100/0150/HDG/3 | LSL100/0150/HDG/6 |
| 300 | LSL100/0300/HDG/3 | LSL100/0300/HDG/6 |
| 450 | LSL100/0450/HDG/3 | LSL100/0450/HDG/6 |
| 600 | LSL100/0600/HDG/3 | LSL100/0600/HDG/6 |
| 750 | LSL100/0750/HDG/3 | LSL100/0750/HDG/6 |
| 900 | LSL100/0900/HDG/3 | LSL100/0900/HDG/6 |
Heavy Duty – 125mm Deep Cable Tray Straight Section
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm | 3m Long | 6m Long |
| 150 | LSL125/0150/HDG/3 | LSL150/0150/HDG/6 |
| 300 | LSL125/0300/HDG/3 | LSL150/0300/HDG/6 |
| 450 | LSL125/0450/HDG/3 | LSL150/0450/HDG/6 |
| 600 | LSL125/0600/HDG/3 | LSL150/0600/HDG/6 |
| 750 | LSL125/0750/HDG/3 | LSL150/0750/HDG/6 |
| 900 | LSL125/0900/HDG/3 | N/A |
Extra Heavy Duty – 150mm Deep Cable Tray Straight Section
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm | 3m Long | 6m Long |
| 150 | LSL150/0150/HDG/3 | LSL150/0150/HDG/6 |
| 300 | LSL150/0300/HDG/3 | LSL150/0300/HDG/6 |
| 450 | LSL150/0450/HDG/3 | LSL150/0450/HDG/6 |
| 600 | LSL150/0600/HDG/3 | LSL150/0600/HDG/6 |
| 750 | LSL150/0750/HDG/3 | LSL150/0750/HDG/6 |
| 900 | LSL150/0900/HDG/3 | LSL150/0900/HDG/6 |
Flat Bends
30°, 45°, 60° & 90° flat bends
Flat bends for Metsec cable ladders are available with 90° bend and 300mm radius as standard with 30°, 45° and 60° variations and 450mm, 600mm, 750mm and 900mm radii produced to order.
Flat bends are manufactured in 50mm, 100mm, 125mm and 150mm depths, each with the same footprint to aid setting out when final loadings are not yet available.
Standard widths are 150mm, 300mm, 450mm, 600mm, 750mm and 900mm with alternative widths available, to order, to meet the requirements of the European markets.
Materials and finishes available are mild steel hot dip galvanised as standard and stainless steel grade 1.4404 (316L) to order.
Closed and ventilated covers are available for all flat bends.
90° Flat Bend
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm | Light Duty 50mm Deep | Medium Duty 100mm Deep | Heavy Duty 125mm Deep | Extra Heavy Duty 150mm Deep |
| 150 | LFB050/0150HDG/90R300 | LFB100/0150HDG/90R300 | LFB125/0150HDG/90R300 | LFB150/0150HDG/90R300 |
| 300 | LFB050/0300HDG/90R300 | LFB100/0300HDG/90R300 | LFB125/0300HDG/90R300 | LFB150/0300HDG/90R300 |
| 450 | LFB050/0450HDG/90R300 | LFB100/0450HDG/90R300 | LFB125/0450HDG/90R300 | LFB150/0450HDG/90R300 |
| 600 | N/A | LFB100/0600HDG/90R300 | LFB125/0600HDG/90R300 | LFB150/0600HDG/90R300 |
| 750 | N/A | LFB100/0750HDG/90R300 | LFB125/0750HDG/90R300 | LFB150/0750HDG/90R300 |
| 900 | N/A | LFB100/0900HDG/90R300 | LFB125/0900HDG/90R300 | LFB150/0900HDG/90R300 |
60° Flat Bend (Made to Order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm | Light Duty 50mm Deep | Medium Duty 100mm Deep | Heavy Duty 125mm Deep | Extra Heavy Duty 150mm Deep |
| 150 | LFB050/0150HDG/60R300 | LFB100/0150HDG/60R300 | LFB125/0150HDG/60R300 | LFB150/0150HDG/60R300 |
| 300 | LFB050/0300HDG/60R300 | LFB100/0300HDG/60R300 | LFB125/0300HDG/60R300 | LFB150/0300HDG/60R300 |
| 450 | LFB050/0450HDG/60R300 | LFB100/0450HDG/60R300 | LFB125/0450HDG/60R300 | LFB150/0450HDG/60R300 |
| 600 | N/A | LFB100/0600HDG/60R300 | LFB125/0600HDG/60R300 | LFB150/0600HDG/60R300 |
| 750 | N/A | LFB100/0750HDG/60R300 | LFB125/0750HDG/60R300 | LFB150/0750HDG/60R300 |
| 900 | N/A | LFB100/0900HDG/60R300 | LFB125/0900HDG/60R300 | LFB150/0900HDG/60R300 |
45° Flat Bend (Made to Order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm | Light Duty 50mm Deep | Medium Duty 100mm Deep | Heavy Duty 125mm Deep | Extra Heavy Duty 150mm Deep |
| 150 | LFB050/0150HDG/45R300 | LFB100/0150HDG/45R300 | LFB125/0150HDG/45R300 | LFB150/0150HDG/45R300 |
| 300 | LFB050/0300HDG/45R300 | LFB100/0300HDG/45R300 | LFB125/0300HDG/45R300 | LFB150/0300HDG/45R300 |
| 450 | LFB050/0450HDG/45R300 | LFB100/0450HDG/45R300 | LFB125/0450HDG/45R300 | LFB150/0450HDG/45R300 |
| 600 | N/A | LFB100/0600HDG/45R300 | LFB125/0600HDG/45R300 | LFB150/0600HDG/45R300 |
| 750 | N/A | LFB100/0750HDG/45R300 | LFB125/0750HDG/45R300 | LFB150/0750HDG/45R300 |
| 900 | N/A | LFB100/0900HDG/45R300 | LFB125/0900HDG/45R300 | LFB150/0900HDG/45R300 |
30° Flat Bend (Made to Order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm | Light Duty 50mm Deep | Medium Duty 100mm Deep | Heavy Duty 125mm Deep | Extra Heavy Duty 150mm Deep |
| 150 | LFB050/0150HDG/30R300 | LFB100/0150HDG/30R300 | LFB125/0150HDG/30R300 | LFB150/0150HDG/30R300 |
| 300 | LFB050/0300HDG/30R300 | LFB100/0300HDG/30R300 | LFB125/0300HDG/30R300 | LFB150/0300HDG/30R300 |
| 450 | LFB050/0450HDG/30R300 | LFB100/0450HDG/30R300 | LFB125/0450HDG/30R300 | LFB150/0450HDG/30R300 |
| 600 | N/A | LFB100/0600HDG/30R300 | LFB125/0600HDG/30R300 | LFB150/0600HDG/30R300 |
| 750 | N/A | LFB100/0750HDG/30R300 | LFB125/0750HDG/30R300 | LFB150/0750HDG/30R300 |
| 900 | N/A | LFB100/0900HDG/30R300 | LFB125/0900HDG/30R300 | LFB150/0900HDG/30R300 |
Tees & Crossovers
Equal tees, unequal tees & crossovers
Tees and crossovers are available in widths of 150mm, 300mm, 450mm, 600mm, 750mm and 900mm as standard with alternative widths and unequal tees made to order. The standard radius is 300mm with 450mm, 600mm, 750mm and 900mm radii produced to order.
Tees and crossovers are manufactured in 50mm, 100mm, 125mm and 150mm depths, each with the same footprint to aid setting out when final loadings are not yet available.
Materials and finishes available are mild steel hot dip galvanised as standard and stainless steel grade 1.4404 (316L) to order.
Closed and ventilated covers are available for all tees and crossovers.
Equal Tee
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm |
Light Duty 50mm Deep |
Medium Duty 100mm Deep |
Heavy Duty 125mm Deep |
Extra Heavy Duty 150mm Deep |
| 150 | LET050/0150HDGR300 | LET100/0150HDGR300 | LET125/0150HDGR300 | LET150/0150HDGR300 |
| 300 | LET050/0300HDGR300 | LET100/0300HDGR300 | LET125/0300HDGR300 | LET150/0300HDGR300 |
| 450 | LET050/0450HDGR300 | LET100/0450HDGR300 | LET125/0450HDGR300 | LET150/0450HDGR300 |
| 600 | N/A | LET100/0600HDGR300 | LET125/0600HDGR300 | LET150/0600HDGR300 |
| 750 | N/A | LET100/0750HDGR300 | LET125/0750HDGR300 | LET150/0750HDGR300 |
| 900 | N/A | LET100/0900HDGR300 | LET125/0900HDGR300 | LET150/0900HDGR300 |
Unequal Tee (Made to Order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900.
Finish: Hot Dip Galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
How to generate the part number – LUT (depth)/W1/W2(finish)(radius)
Example – LUT100/300/150/HDGR300
Table below shows a complete list of W1 and W2 combinations.
| W1 | W2 |
| 150 | 300, 450, 600, 750, 900 |
| 300 | 150, 450, 600, 750, 900 |
| 450 | 150, 300, 600, 750, 900 |
| 600 | 150, 300, 450, 750, 900 |
| 750 | 150, 300, 450, 600, 900 |
| 900 | 150, 300, 450, 600, 750 |
Crossover
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm |
Light Duty 50mm Deep |
Medium Duty 100mm Deep |
Heavy Duty 125mm Deep |
Extra Heavy Duty 150mm Deep |
| 150 | LCO050/0150HDGR300 | LCO100/0150HDGR300 | LCO125/0150HDGR300 | LCO150/0150HDGR300 |
| 300 | LCO050/0300HDGR300 | LCO100/0300HDGR300 | LCO125/0300HDGR300 | LCO150/0300HDGR300 |
| 450 | LCO050/0450HDGR300 | LCO100/0450HDGR300 | LCO125/0450HDGR300 | LCO150/0450HDGR300 |
| 600 | N/A | LCO100/0600HDGR300 | LCO125/0600HDGR300 | LCO150/0600HDGR300 |
| 750 | N/A | LCO100/0750HDGR300 | LCO125/0750HDGR300 | LCO150/0750HDGR300 |
| 900 | N/A | LCO100/0900HDGR300 | LCO125/0900HDGR300 | LCO150/0900HDGR300 |
Reducers
Straight & left/right hand reducers
voestalpine Metsec cable ladder reducers are available in widths of 150mm, 300mm, 450mm, 600mm, 750mm and 900mm with alternative widths available to meet the requirements of the European markets.
Reducers are manufactured in 50mm, 100mm, 125mm and 150mm depths, each with the same footprint to aid setting out when final loadings are not yet available.
Materials and finishes available are mild steel hot dip galvanised as standard and stainless steel grade 1.4404 (316L) to order.
Closed and ventilated covers are available for all reducers.
Straight Reducer (Made to Order)
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm W1 |
Width mm W2 |
Light Duty 50mm Deep |
Medium Duty 100mm Deep |
Heavy Duty 125mm Deep |
Extra Heavy Duty 150mm Deep |
| 300 | 150 | LSR050/0300/0150HDG | LSR100/0300/0150HDG | LSR125/0300/0150HDG | LSR150/0300/0150HDG |
| 450 | 150 | LSR050/0450/0150HDG | LSR100/0450/0150HDG | LSR125/0450/0150HDG | LSR150/0450/0150HDG |
| 600 | 150 | N/A | LSR100/0600/0150HDG | LSR125/0600/0150HDG | LSR150/0600/0150HDG |
| 750 | 150 | N/A | LSR100/0750/0150HDG | LSR125/0750/0150HDG | LSR150/0750/0150HDG |
| 900 | 150 | N/A | LSR100/0900/0150HDG | LSR125/0900/0150HDG | LSR150/0900/0150HDG |
| 450 | 300 | LSR050/0450/0300HDG | LSR100/0450/0300HDG | LSR125/0450/0300HDG | LSR150/0450/0300HDG |
| 600 | 300 | N/A | LSR100/0600/0300HDG | LSR125/0600/0300HDG | LSR150/0600/0300HDG |
| 750 | 300 | N/A | LSR100/0750/0300HDG | LSR125/0750/0300HDG | LSR150/0750/0300HDG |
| 900 | 300 | N/A | LSR100/0900/0300HDG | LSR125/0900/0300HDG | LSR150/0900/0300HDG |
| 600 | 450 | N/A | LSR100/0600/0450HDG | LSR125/0600/0450HDG | LSR150/0600/0450HDG |
| 750 | 450 | N/A | LSR100/0750/0450HDG | LSR125/0750/0450HDG | LSR150/0750/0450HDG |
| 900 | 450 | N/A | LSR100/0900/0450HDG | LSR125/0900/0450HDG | LSR150/0900/0450HDG |
| 750 | 600 | N/A | LSR100/0750/0600HDG | LSR125/0750/0600HDG | LSR150/0750/0600HDG |
| 900 | 600 | N/A | LSR100/0900/0600HDG | LSR125/0900/0600HDG | LSR150/0900/0600HDG |
| 900 | 750 | N/A | LSR100/0900/0750HDG | LSR125/0600/0300HDG | LSR150/0900/0750HDG |
Left Hand Reducer (Made to Order)
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm W1 |
Width mm W2 |
Light Duty 50mm Deep |
Medium Duty 100mm Deep |
Heavy Duty 125mm Deep |
Extra Heavy Duty 150mm Deep |
| 300 | 150 | LLR050/0300/0150HDG | LLR100/0300/0150HDG | LLR125/0300/0150HDG | LLR150/0300/0150HDG |
| 450 | 150 | LLR050/0450/0150HDG | LLR100/0450/0150HDG | LLR125/0450/0150HDG | LLR150/0450/0150HDG |
| 600 | 150 | N/A | LLR100/0600/0150HDG | LLR125/0600/0150HDG | LLR150/0600/0150HDG |
| 750 | 150 | N/A | LLR100/0750/0150HDG | LLR125/0750/0150HDG | LLR150/0750/0150HDG |
| 900 | 150 | N/A | LLR100/0900/0150HDG | LLR125/0900/0150HDG | LLR150/0900/0150HDG |
| 450 | 300 | LLR050/0450/0300HDG | LLR100/0450/0300HDG | LLR125/0450/0300HDG | LLR150/0450/0300HDG |
| 600 | 300 | N/A | LLR100/0600/0300HDG | LLR125/0600/0300HDG | LLR150/0600/0300HDG |
| 750 | 300 | N/A | LLR100/0750/0300HDG | LLR125/0750/0300HDG | LLR150/0750/0300HDG |
| 900 | 300 | N/A | LLR100/0900/0300HDG | LLR125/0900/0300HDG | LLR150/0900/0300HDG |
| 600 | 450 | N/A | LLR100/0600/0450HDG | LLR125/0600/0450HDG | LLR150/0600/0450HDG |
| 750 | 450 | N/A | LLR100/0750/0450HDG | LLR125/0750/0450HDG | LLR150/0750/0450HDG |
| 900 | 450 | N/A | LLR100/0900/0450HDG | LLR125/0900/0450HDG | LLR150/0900/0450HDG |
| 750 | 600 | N/A | LLR100/0750/0600HDG | LLR125/0750/0600HDG | LLR150/0750/0600HDG |
| 900 | 600 | N/A | LLR100/0900/0600HDG | LLR125/0900/0600HDG | LLR150/0900/0600HDG |
| 900 | 750 | N/A | LLR100/0900/0750HDG | LLR125/0600/0300HDG | LLR150/0900/0750HDG |
Right Hand Reducer (Made to Order)
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm W1 |
Width mm W2 |
Light Duty 50mm Deep |
Medium Duty 100mm Deep |
Heavy Duty 125mm Deep |
Extra Heavy Duty 150mm Deep |
| 300 | 150 | LRR050/0300/0150HDG | LRR100/0300/0150HDG | LRR125/0300/0150HDG | LRR150/0300/0150HDG |
| 450 | 150 | LRR050/0450/0150HDG | LRR100/0450/0150HDG | LRR125/0450/0150HDG | LRR150/0450/0150HDG |
| 600 | 150 | N/A | LRR100/0600/0150HDG | LRR125/0600/0150HDG | LRR150/0600/0150HDG |
| 750 | 150 | N/A | LRR100/0750/0150HDG | LRR125/0750/0150HDG | LRR150/0750/0150HDG |
| 900 | 150 | N/A | LRR100/0900/0150HDG | LRR125/0900/0150HDG | LRR150/0900/0150HDG |
| 450 | 300 | LRR050/0450/0300HDG | LRR100/0450/0300HDG | LRR125/0450/0300HDG | LRR150/0450/0300HDG |
| 600 | 300 | N/A | LRR100/0600/0300HDG | LRR125/0600/0300HDG | LRR150/0600/0300HDG |
| 750 | 300 | N/A | LRR100/0750/0300HDG | LRR125/0750/0300HDG | LRR150/0750/0300HDG |
| 900 | 300 | N/A | LRR100/0900/0300HDG | LRR125/0900/0300HDG | LRR150/0900/0300HDG |
| 600 | 450 | N/A | LRR100/0600/0450HDG | LRR125/0600/0450HDG | LRR150/0600/0450HDG |
| 750 | 450 | N/A | LRR100/0750/0450HDG | LRR125/0750/0450HDG | LRR150/0750/0450HDG |
| 900 | 450 | N/A | LRR100/0900/0450HDG | LRR125/0900/0450HDG | LRR150/0900/0450HDG |
| 750 | 600 | N/A | LRR100/0750/0600HDG | LRR125/0750/0600HDG | LRR150/0750/0600HDG |
| 900 | 600 | N/A | LRR100/0900/0600HDG | LRR125/0900/0600HDG | LRR150/0900/0600HDG |
| 900 | 750 | N/A | LRR100/0900/0750HDG | LRR125/0600/0300HDG | LRR150/0900/0750HDG |
Risers
30°, 45°, 60° & 90° internal & external risers & flexible articulated risers
Internal and external risers for voestalpine Metsec cable ladders are available with 90° rotation and 300mm radius as standard with 30°, 45° and 60° variations and 450mm, 600mm, 750mm and 900mm radii produced to order. A flexible articulated riser is also available and is made to order.
Risers are manufactured in 50mm, 100mm, 125mm and 150mm depths, each with the same footprint to aid setting out when final loadings are not yet available.
Standard widths are 150mm, 300mm, 450mm, 600mm, 750mm and 900mm with alternative widths available, to order, to meet the requirements of the European markets.
Materials and finishes available are mild steel hot dip galvanised as standard and stainless steel grade 1.4404 (316L) to order.
Closed and ventilated covers are available for all risers.
90º External Riser
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm |
Light Duty 50mm Deep |
Medium Duty 100mm Deep |
Heavy Duty 125mm Deep |
Extra Heavy Duty 150mm Deep |
| 150 | LER050/0150HDG/90R300 | LER100/0150HDG/90R300 | LER125/0150HDG/90R300 | LER150/0150HDG/90R300 |
| 300 | LER050/0300HDG/90R300 | LER100/0300HDG/90R300 | LER125/0300HDG/90R300 | LER150/0300HDG/90R300 |
| 400 | LER050/0450HDG/90R300 | LER100/0450HDG/90R300 | LER125/0450HDG/90R300 | LER150/0450HDG/90R300 |
| 600 | N/A | LER100/0600HDG/90R300 | LER125/0600HDG/90R300 | LER150/0600HDG/90R300 |
| 750 | N/A | LER100/0750HDG/90R300 | LER125/0750HDG/90R300 | LER150/0750HDG/90R300 |
| 900 | N/A | LER100/0900HDG/90R300 | LER125/0900HDG/90R300 | LER150/0900HDG/90R300 |
60º External Riser (Made to Order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm |
Light Duty 50mm Deep |
Medium Duty 100mm Deep |
Heavy Duty 125mm Deep |
Extra Heavy Duty 150mm Deep |
| 150 | LER050/0150HDG/60R300 | LER100/0150HDG/60R300 | LER125/0150HDG/60R300 | LER150/0150HDG/60R300 |
| 300 | LER050/0300HDG/60R300 | LER100/0300HDG/60R300 | LER125/0300HDG/60R300 | LER150/0300HDG/60R300 |
| 400 | LER050/0450HDG/60R300 | LER100/0450HDG/60R300 | LER125/0450HDG/60R300 | LER150/0450HDG/60R300 |
| 600 | N/A | LER100/0600HDG/60R300 | LER125/0600HDG/60R300 | LER150/0600HDG/60R300 |
| 750 | N/A | LER100/0750HDG/60R300 | LER125/0750HDG/60R300 | LER150/0750HDG/60R300 |
| 900 | N/A | LER100/0900HDG/60R300 | LER125/0900HDG/60R300 | LER150/0900HDG/60R300 |
45º External Riser (Made to Order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm |
Light Duty 50mm Deep |
Medium Duty 100mm Deep |
Heavy Duty 125mm Deep |
Extra Heavy Duty 150mm Deep |
| 150 | LER050/0150HDG/45R300 | LER100/0150HDG/45R300 | LER125/0150HDG/45R300 | LER150/0150HDG/45R300 |
| 300 | LER050/0300HDG/45R300 | LER100/0300HDG/45R300 | LER125/0300HDG/45R300 | LER150/0300HDG/45R300 |
| 400 | LER050/0450HDG/45R300 | LER100/0450HDG/45R300 | LER125/0450HDG/45R300 | LER150/0450HDG/45R300 |
| 600 | N/A | LER100/0600HDG/45R300 | LER125/0600HDG/45R300 | LER150/0600HDG/45R300 |
| 750 | N/A | LER100/0750HDG/45R300 | LER125/0750HDG/45R300 | LER150/0750HDG/45R300 |
| 900 | N/A | LER100/0900HDG/45R300 | LER125/0900HDG/45R300 | LER150/0900HDG/45R300 |
30º Internal Riser (Made to Order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm |
Light Duty 50mm Deep |
Medium Duty 100mm Deep |
Heavy Duty 125mm Deep |
Extra Heavy Duty 150mm Deep |
| 150 | LER050/0150HDG/30R300 | LER100/0150HDG/30R300 | LER125/0150HDG/30R300 | LER150/0150HDG/30R300 |
| 300 | LER050/0300HDG/30R300 | LER100/0300HDG/30R300 | LER125/0300HDG/30R300 | LER150/0300HDG/30R300 |
| 400 | LER050/0450HDG/30R300 | LER100/0450HDG/30R300 | LER125/0450HDG/30R300 | LER150/0450HDG/30R300 |
| 600 | N/A | LER100/0600HDG/30R300 | LER125/0600HDG/30R300 | LER150/0600HDG/30R300 |
| 750 | N/A | LER100/0750HDG/30R300 | LER125/0750HDG/30R300 | LER150/0750HDG/30R300 |
| 900 | N/A | LER100/0900HDG/30R300 | LER125/0900HDG/30R300 | LER150/0900HDG/30R300 |
90º Internal Riser
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm |
Light Duty 50mm Deep |
Medium Duty 100mm Deep |
Heavy Duty 125mm Deep |
Extra Heavy Duty 150mm Deep |
| 150 | LIR050/0150HDG/90R300 | LIR100/0150HDG/90R300 | LIR125/0150HDG/90R300 | LIR150/0150HDG/90R300 |
| 300 | LIR050/0300HDG/90R300 | LIR100/0300HDG/90R300 | LIR125/0300HDG/90R300 | LIR150/0300HDG/90R300 |
| 400 | LIR050/0450HDG/90R300 | LIR100/0450HDG/90R300 | LIR125/0450HDG/90R300 | LIR150/0450HDG/90R300 |
| 600 | N/A | LIR100/0600HDG/90R300 | LIR125/0600HDG/90R300 | LIR150/0600HDG/90R300 |
| 750 | N/A | LIR100/0750HDG/90R300 | LIR125/0750HDG/90R300 | LIR150/0750HDG/90R300 |
| 900 | N/A | LIR100/0900HDG/90R300 | LIR125/0900HDG/90R300 | LIR150/0900HDG/90R300 |
60º Internal Riser (Made to Order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm |
Light Duty 50mm Deep |
Medium Duty 100mm Deep |
Heavy Duty 125mm Deep |
Extra Heavy Duty 150mm Deep |
| 150 | LIR050/0150HDG/60R300 | LIR100/0150HDG/60R300 | LIR125/0150HDG/60R300 | LIR150/0150HDG/60R300 |
| 300 | LIR050/0300HDG/60R300 | LIR100/0300HDG/60R300 | LIR125/0300HDG/60R300 | LIR150/0300HDG/60R300 |
| 400 | LIR050/0450HDG/60R300 | LIR100/0450HDG/60R300 | LIR125/0450HDG/60R300 | LIR150/0450HDG/60R300 |
| 600 | N/A | LIR100/0600HDG/60R300 | LIR125/0600HDG/60R300 | LIR150/0600HDG/60R300 |
| 750 | N/A | LIR100/0750HDG/60R300 | LIR125/0750HDG/60R300 | LIR150/0750HDG/60R300 |
| 900 | N/A | LIR100/0900HDG/60R300 | LIR125/0900HDG/60R300 | LIR150/0900HDG/60R300 |
45º Internal Riser (Made to Order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm |
Light Duty 50mm Deep |
Medium Duty 100mm Deep |
Heavy Duty 125mm Deep |
Extra Heavy Duty 150mm Deep |
| 150 | LIR050/0150HDG/45R300 | LIR100/0150HDG/45R300 | LIR125/0150HDG/45R300 | LIR150/0150HDG/45R300 |
| 300 | LIR050/0300HDG/45R300 | LIR100/0300HDG/45R300 | LIR125/0300HDG/45R300 | LIR150/0300HDG/45R300 |
| 400 | LIR050/0450HDG/45R300 | LIR100/0450HDG/45R300 | LIR125/0450HDG/45R300 | LIR150/0450HDG/45R300 |
| 600 | N/A | LIR100/0600HDG/45R300 | LIR125/0600HDG/45R300 | LIR150/0600HDG/45R300 |
| 750 | N/A | LIR100/0750HDG/45R300 | LIR125/0750HDG/45R300 | LIR150/0750HDG/45R300 |
| 900 | N/A | LIR100/0900HDG/45R300 | LIR125/0900HDG/45R300 | LIR150/0900HDG/45R300 |
Covers
A complete range of closed & ventilated covers for the Metsec cable ladder system
voestalpine Metsec produce, to order, a range of closed and ventilated covers for the entire voestalpine Metsec cable ladder system. Materials and finishes available are mild steel hot dip galvanised as standard and stainless steel grade 1.4404 (316L).
Straight Length Covers
Straight Length Covers – 1.5m Long (made to order)
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes 4 fixing clamps and fasteners, 2 covers required for 3m ladder, 4 covers for 6m ladder
Straight Length Covers – 1.5m Long (made to order)
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes 4 fixing clamps and fasteners, 2 covers required for 3m ladder, 4 covers for 6m ladder
| Width mm | |
| 150 | LSLC/0150HDG/1.5 |
| 300 | LSLC/0300HDG/1.5 |
| 450 | LSLC/0450HDG/1.5 |
| 600 | LSLC/0600HDG/1.5 |
| 750 | LSLC/0750HDG/1.5 |
| 900 | LSLC/0900HDG/1.5 |
Extra Fixing Clamps
Pack of 10 (includes fasteners)
| Standard cover clip | Ventilated cover clip | ||
|---|---|---|---|
| L/CCC |  |
L/CCV |  |
Flat Bend Covers
90º Flat Bend Covers (made to order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | |
|---|---|
| 150 | LFBC/0150HDG/90R300 |
| 300 | LFBC/0300HDG/90R300 |
| 450 | LFBC/0450HDG/90R300 |
| 600 | LFBC/0600HDG/90R300 |
| 750 | LFBC/0750HDG/90R300 |
| 900 | LFBC/0900HDG/90R300 |
60º Flat Bend Covers (made to order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | |
|---|---|
| 150 | LFBC/0150HDG/60R300 |
| 300 | LFBC/0300HDG/60R300 |
| 450 | LFBC/0450HDG/60R300 |
| 600 | LFBC/0600HDG/60R300 |
| 750 | LFBC/0750HDG/60R300 |
| 900 | LFBC/0900HDG/60R300 |
45º Flat Bend Covers (made to order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | |
|---|---|
| 150 | LFBC/0150HDG/45R300 |
| 300 | LFBC/0300HDG/45R300 |
| 450 | LFBC/0450HDG/45R300 |
| 600 | LFBC/0600HDG/45R300 |
| 750 | LFBC/0750HDG/45R300 |
| 900 | LFBC/0900HDG/45R300 |
30º Flat Bend Covers (made to order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | |
|---|---|
| 150 | LFBC/0150HDG/30R300 |
| 300 | LFBC/0300HDG/30R300 |
| 450 | LFBC/0450HDG/30R300 |
| 600 | LFBC/0600HDG/30R300 |
| 750 | LFBC/0750HDG/30R300 |
| 900 | LFBC/0900HDG/30R300 |
Tees & Crossover Covers
Equal Tee Covers (made to order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | |
|---|---|
| 150 | LETC/0150HDGR300 |
| 300 | LETC/0300HDGR300 |
| 450 | LETC/0450HDGR300 |
| 600 | LETC/0600HDGR300 |
| 750 | LETC/0750HDGR300 |
| 900 | LETC/0900HDGR300 |
Unequal Tee Covers (made to order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900.
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
How to generate the part number – LUT (cover type)/W1/W2(finish)(radius)
Example – LUTC/0300/0150HDGR300
Table below shows a complete list of W1 and W2 combinations.
| W1 | W2 |
|---|---|
| 150 | 300, 450, 600, 750, 900 |
| 300 | 150, 450, 600, 750, 900 |
| 450 | 150, 300, 600, 750, 900 |
| 600 | 150, 300, 450, 750, 900 |
| 750 | 150, 300, 450, 600, 900 |
| 900 | 150, 300, 450, 600, 750 |
Crossover Covers (made to order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | |
|---|---|
| 150 | LCOC/0150HDGR300 |
| 300 | LCOC/0300HDGR300 |
| 450 | LCOC/0450HDGR300 |
| 600 | LCOC/0600HDGR300 |
| 750 | LCOC/0750HDGR300 |
| 900 | LCOC/0900HDGR300 |
Reducer Covers
Straight Reducer Covers (made to order)
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | ||
|---|---|---|
| W1 | W2 | |
| 300 | 150 | LSRC/0300/0150HDG |
| 450 | 150 | LSRC/0450/0150HDG |
| 600 | 150 | LSRC/0600/0150HDG |
| 750 | 150 | LSRC/0750/0150HDG |
| 900 | 150 | LSRC/0900/0150HDG |
| 450 | 300 | LSRC/0450/0300HDG |
| 600 | 300 | LSRC/0600/0300HDG |
| 750 | 300 | LSRC/0750/0300HDG |
| 900 | 300 | LSRC/0900/0300HDG |
| 600 | 450 | LSRC/0600/0450HDG |
| 750 | 450 | LSRC/0750/0450HDG |
| 900 | 450 | LSRC/0900/0450HDG |
| 750 | 600 | LSRC/0750/0600HDG |
| 900 | 600 | LSRC/0900/0600HDG |
| 900 | 750 | LSRC/0900/0750HDG |
Left Hand Reducer Covers (made to order)
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | ||
|---|---|---|
| W1 | W2 | |
| 300 | 150 | LLRC/0300/0150HDG |
| 450 | 150 | LLRC/0450/0150HDG |
| 600 | 150 | LLRC/0600/0150HDG |
| 750 | 150 | LLRC/0750/0150HDG |
| 900 | 150 | LLRC/0900/0150HDG |
| 450 | 300 | LLRC/0450/0300HDG |
| 600 | 300 | LLRC/0600/0300HDG |
| 750 | 300 | LLRC/0750/0300HDG |
| 900 | 300 | LLRC/0900/0300HDG |
| 600 | 450 | LLRC/0600/0450HDG |
| 750 | 450 | LLRC/0750/0450HDG |
| 900 | 450 | LLRC/0900/0450HDG |
| 750 | 600 | LLRC/0750/0600HDG |
| 900 | 600 | LLRC/0900/0600HDG |
| 900 | 750 | LLRC/0900/0750HDG |
Right Hand Reducer Covers (made to order)
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | ||
|---|---|---|
| W1 | W2 | |
| 300 | 150 | LRRC/0300/0150HDG |
| 450 | 150 | LRRC/0450/0150HDG |
| 600 | 150 | LRRC/0600/0150HDG |
| 750 | 150 | LRRC/0750/0150HDG |
| 900 | 150 | LRRC/0900/0150HDG |
| 450 | 300 | LRRC/0450/0300HDG |
| 600 | 300 | LRRC/0600/0300HDG |
| 750 | 300 | LRRC/0750/0300HDG |
| 900 | 300 | LRRC/0900/0300HDG |
| 600 | 450 | LRRC/0600/0450HDG |
| 750 | 450 | LRRC/0750/0450HDG |
| 900 | 450 | LRRC/0900/0450HDG |
| 750 | 600 | LRRC/0750/0600HDG |
| 900 | 600 | LRRC/0900/0600HDG |
| 900 | 750 | LRRC/0900/0750HDG |
External Riser Covers
90º External Riser Covers (made to order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (Made to order)
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | Light Duty 50mm Deep | Medium Duty 100mm Deep | Heavy Duty 125mm Deep | Extra Heavy Duty 150mm Deep |
|---|---|---|---|---|
| 150 | LERC050/0150?HDG/90R300 | LERC100/0150?HDG/90R300 | LERC125/0150?HDG/90R300 | LERC150/0150?HDG/90R300 |
| 300 | LERC050/0300?HDG/90R300 | LERC100/0300?HDG/90R300 | LERC125/0300?HDG/90R300 | LERC150/0300?HDG/90R300 |
| 450 | LERC050/0450?HDG/90R300 | LERC100/0450?HDG/90R300 | LERC125/0450?HDG/90R300 | LERC150/0450?HDG/90R300 |
| 600 | N/A | LERC100/0600?HDG/90R300 | LERC125/0600?HDG/90R300 | LERC150/0600?HDG/90R300 |
| 750 | N/A | LERC100/0750?HDG/90R300 | LERC125/0750?HDG/90R300 | LERC150/0750?HDG/90R300 |
| 900 | N/A | LERC100/0900?HDG/90R300 | LERC125/0900?HDG/90R300 | LERC150/0900?HDG/90R300 |
60º External Riser Covers (made to order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (Made to order)
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | Light Duty 50mm Deep | Medium Duty 100mm Deep | Heavy Duty 125mm Deep | Extra Heavy Duty 150mm Deep |
|---|---|---|---|---|
| 150 | LERC050/0150?HDG/60R300 | LERC100/0150?HDG/60R300 | LERC125/0150?HDG/60R300 | LERC150/0150?HDG/60R300 |
| 300 | LERC050/0300?HDG/60R300 | LERC100/0300?HDG/60R300 | LERC125/0300?HDG/60R300 | LERC150/0300?HDG/60R300 |
| 450 | LERC050/0450?HDG/60R300 | LERC100/0450?HDG/60R300 | LERC125/0450?HDG/60R300 | LERC150/0450?HDG/60R300 |
| 600 | N/A | LERC100/0600?HDG/60R300 | LERC125/0600?HDG/60R300 | LERC150/0600?HDG/60R300 |
| 750 | N/A | LERC100/0750?HDG/60R300 | LERC125/0750?HDG/60R300 | LERC150/0750?HDG/60R300 |
| 900 | N/A | LERC100/0900?HDG/60R300 | LERC125/0900?HDG/60R300 | LERC150/0900?HDG/60R300 |
45º External Riser Covers (made to order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (Made to order)
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | Light Duty 50mm Deep | Medium Duty 100mm Deep | Heavy Duty 125mm Deep | Extra Heavy Duty 150mm Deep |
|---|---|---|---|---|
| 150 | LERC050/0150?HDG/45R300 | LERC100/0150?HDG/45R300 | LERC125/0150?HDG/45R300 | LERC150/0150?HDG/45R300 |
| 300 | LERC050/0300?HDG/45R300 | LERC100/0300?HDG/45R300 | LERC125/0300?HDG/45R300 | LERC150/0300?HDG/45R300 |
| 450 | LERC050/0450?HDG/45R300 | LERC100/0450?HDG/45R300 | LERC125/0450?HDG/45R300 | LERC150/0450?HDG/45R300 |
| 600 | N/A | LERC100/0600?HDG/45R300 | LERC125/0600?HDG/45R300 | LERC150/0600?HDG/45R300 |
| 750 | N/A | LERC100/0750?HDG/45R300 | LERC125/0750?HDG/45R300 | LERC150/0750?HDG/45R300 |
| 900 | N/A | LERC100/0900?HDG/45R300 | LERC125/0900?HDG/45R300 | LERC150/0900?HDG/45R300 |
30º External Riser Covers (made to order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (Made to order)
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | Light Duty 50mm Deep | Medium Duty 100mm Deep | Heavy Duty 125mm Deep | Extra Heavy Duty 150mm Deep |
|---|---|---|---|---|
| 150 | LERC050/0150?HDG/30R300 | LERC100/0150?HDG/30R300 | LERC125/0150?HDG/30R300 | LERC150/0150?HDG/30R300 |
| 300 | LERC050/0300?HDG/30R300 | LERC100/0300?HDG/30R300 | LERC125/0300?HDG/30R300 | LERC150/0300?HDG/30R300 |
| 450 | LERC050/0450?HDG/30R300 | LERC100/0450?HDG/30R300 | LERC125/0450?HDG/30R300 | LERC150/0450?HDG/30R300 |
| 600 | N/A | LERC100/0600?HDG/30R300 | LERC125/0600?HDG/30R300 | LERC150/0600?HDG/30R300 |
| 750 | N/A | LERC100/0750?HDG/30R300 | LERC125/0750?HDG/30R300 | LERC150/0750?HDG/30R300 |
| 900 | N/A | LERC100/0900?HDG/30R300 | LERC125/0900?HDG/30R300 | LERC150/0900?HDG/30R300 |
Internal Riser Covers
90º Internal Riser Covers (made to order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order)
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | |
|---|---|
| 150 | LIRC/0150HDG/90R300 |
| 300 | LIRC/0300HDG/90R300 |
| 450 | LIRC/0450HDG/90R300 |
| 600 | LIRC/0600HDG/90R300 |
| 750 | LIRC/0750HDG/90R300 |
| 900 | LIRC/0900HDG/90R300 |
60º Internal Riser Covers (made to order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order)
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | |
|---|---|
| 150 | LIRC/0150HDG/60R300 |
| 300 | LIRC/0300HDG/60R300 |
| 450 | LIRC/0450HDG/60R300 |
| 600 | LIRC/0600HDG/60R300 |
| 750 | LIRC/0750HDG/60R300 |
| 900 | LIRC/0900HDG/60R300 |
45º Internal Riser Covers (made to order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order)
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | |
|---|---|
| 150 | LIRC/0150HDG/45R300 |
| 300 | LIRC/0300HDG/45R300 |
| 450 | LIRC/0450HDG/45R300 |
| 600 | LIRC/0600HDG/45R300 |
| 750 | LIRC/0750HDG/45R300 |
| 900 | LIRC/0900HDG/45R300 |
30º Internal Riser Covers (made to order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order)
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
Standard closed covers = C, ventilated cover = CV
Includes fixing clamps and fasteners
| Width mm | |
|---|---|
| 150 | LIRC/0150HDG/30R300 |
| 300 | LIRC/0300HDG/30R300 |
| 450 | LIRC/0450HDG/30R300 |
| 600 | LIRC/0600HDG/30R300 |
| 750 | LIRC/0750HDG/30R300 |
| 900 | LIRC/0900HDG/30R300 |
Accessories
Accessories for the Metsec cable ladder system
Reviews
There are no reviews yet.
